●Plug & play direct charge
●Multiple protection
●Waterproof grade IP65
●Output power up to 7KW
●Stop When Full
●Shell by thermoplastic PC94-V0, abrasion protection
●The 2.8 inch display screen can display charging data
●errors to ensure the stable operation of the product
| DETAILED SPECIFICATIONS | |
| Product model | Model 2 portable EV Charger(US VERSION) |
| STRUCTURE APPEARANCE | |
| Gun head | American standard TYPE 1 |

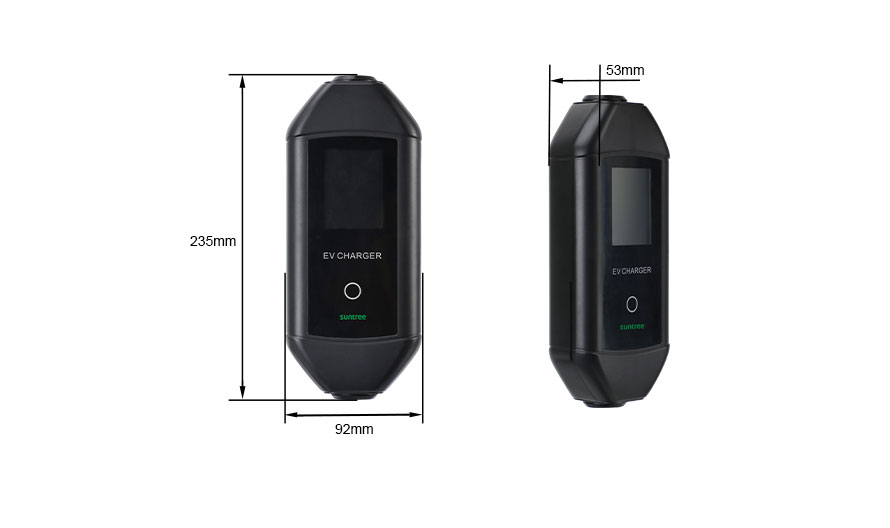

| Equipment size | 235mm *92mm *53mm (L *W*T) |
| Installation method | Wall mounted |
| ELECTRICAL INDICATORS | |
| Input/Output Vltage | AC90-240V |
| Frequency | 50/60Hz |
| Rated power | 3.5KW/7KW |
| Output current | 0-32A |
| FEATURE DESIGN | |

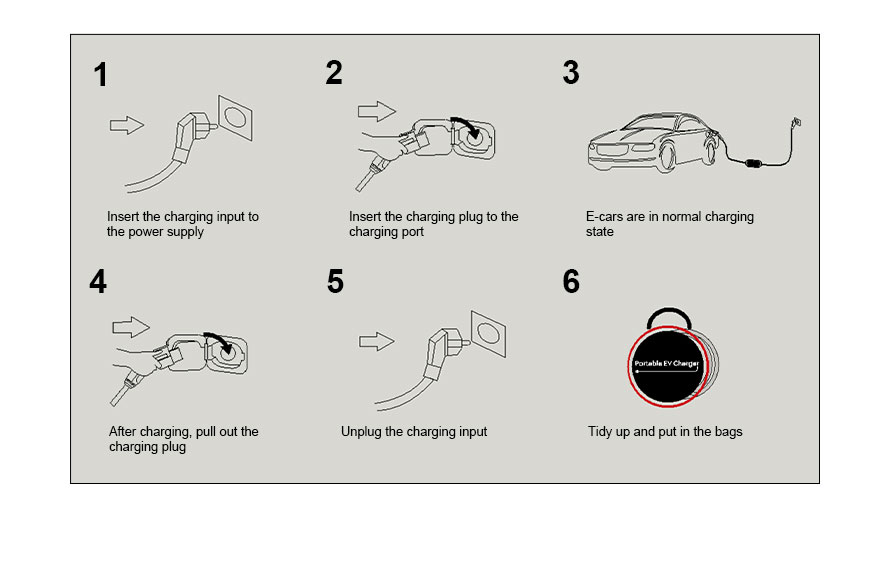

| Start mode | Plug & play |

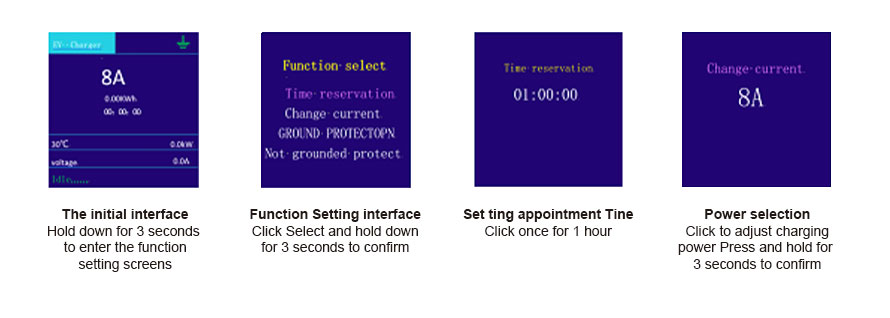

| Display information | 2.8 in LCD large screen, real-time dynamic display, exquisite high-end |
| SAFETY DESIGN | |

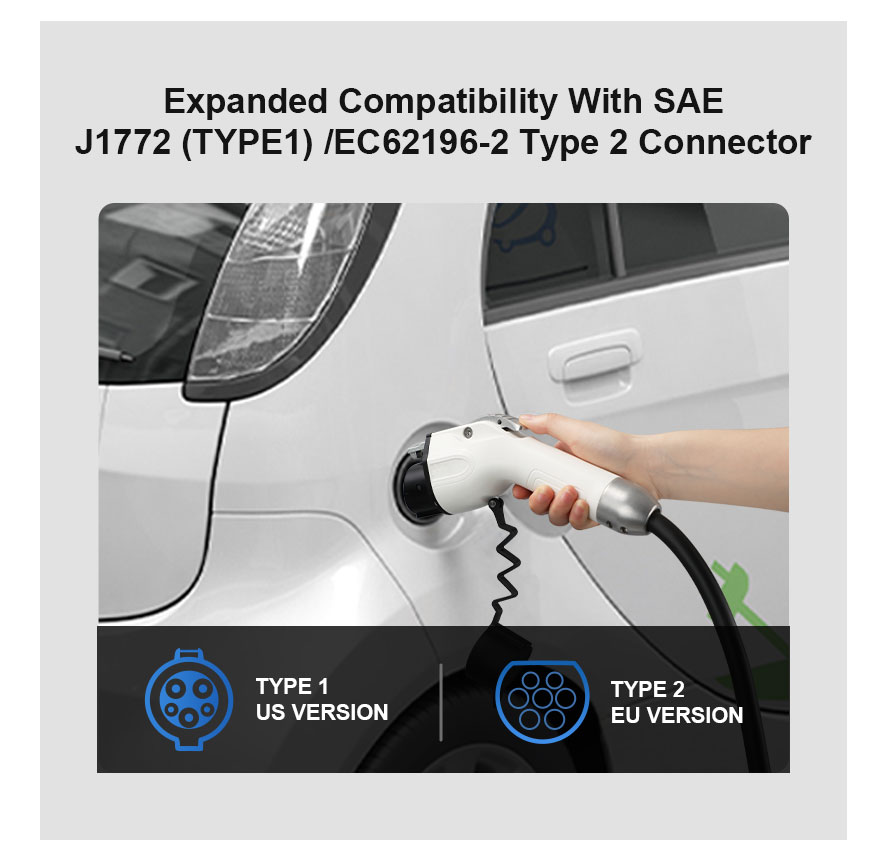

| Executive standard | SAE J1772 (Type 1) |
| Display function |
Leakage protection, Over voltage/ Under-vo tage protection, Lightning protection, Over current protection, Ground protectin, Over temp protection, Surge protection |
| ENVIRONMENTAL INDICATORS | |
| Ambient Humidity | 0-95% RH |
| Operating temperture | -30℃~50℃ |
| Protection class | IP65 |
