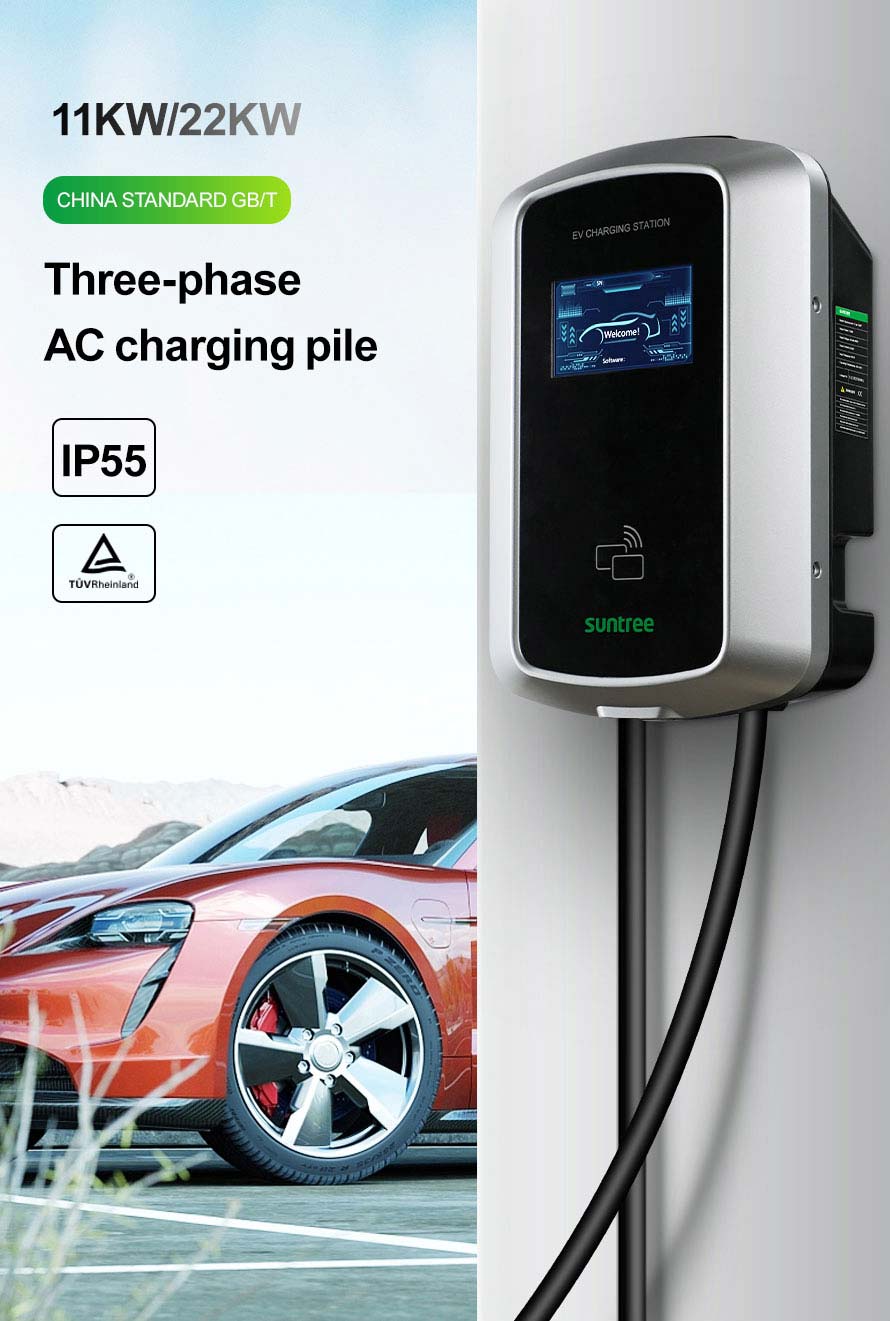

EV Charger 16A/11KW 32A/22KW 4.3 Inch China Standard GB/T

• With swipe card start and remote stop start, with rechargeable IC card.

• Appointment charging function, according to the user's demand for regular charging,
full of automatic end.

• The history function allows you to check historical charging records and cost records.

• Equipped with display screen, real-time display SOC information,estimated full time.

• With overload protection, over-voltage protection,under-voltage protection,
short-circuit protection, over-temperature protection, emergency stop and other functions.

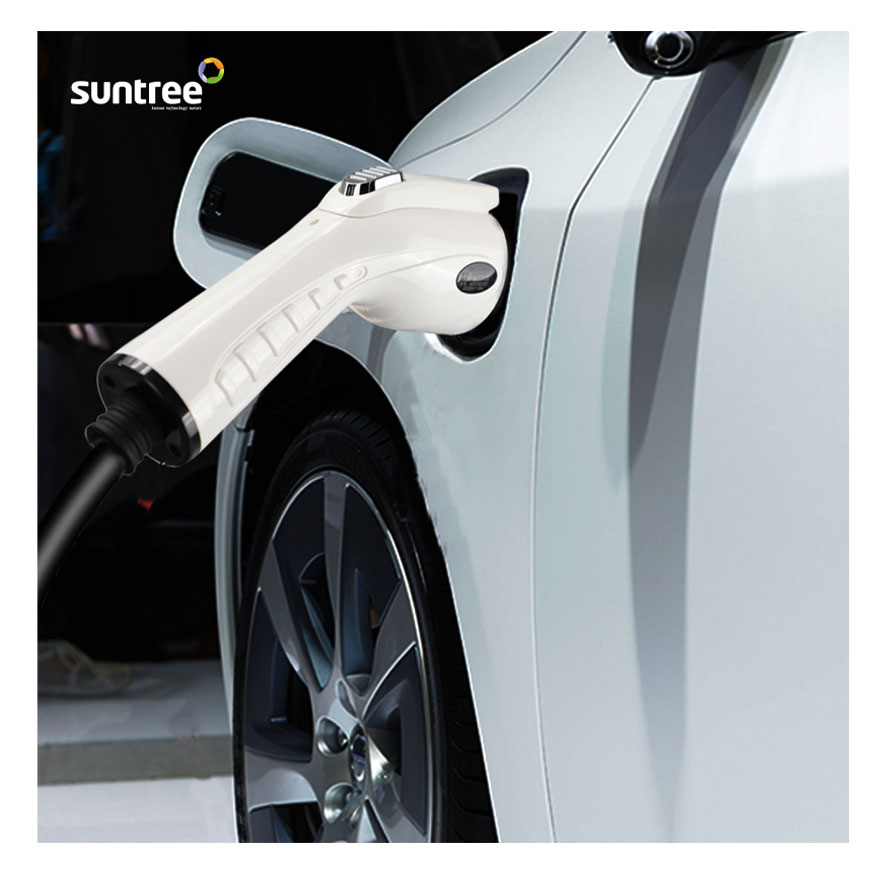

• Easy to charge, Plug and play.

ELECTRICAL TECHNICAL REFERENCE

DETAILED SPECIFICATIONS
Product model	Three-phase AC charging post (CN VERSION)
PARAMETER
Operating Voltage	AC 380 V( L 1 + L 2 + L 3 + N + PE )
Rated power	11KW/22kW
Output current	0-16A/0-32A
Frequency	50Hz
IP Degree	IP55
USE ENVIRONMENT
Working temperature	- 30 ℃— + 50 ℃
Working humidity	5 %~ 95 %HR
The cooling way	Natural air cooling
DISPLAY FUNCTION
Display parameters	Charge voltage, charge current, charge quantity, SOC, fault code
PHYSICAL SIZE
Fuselage size	320220110mm
Installation mode	Column mounted (floor mounted) or wall mounted Install optional
