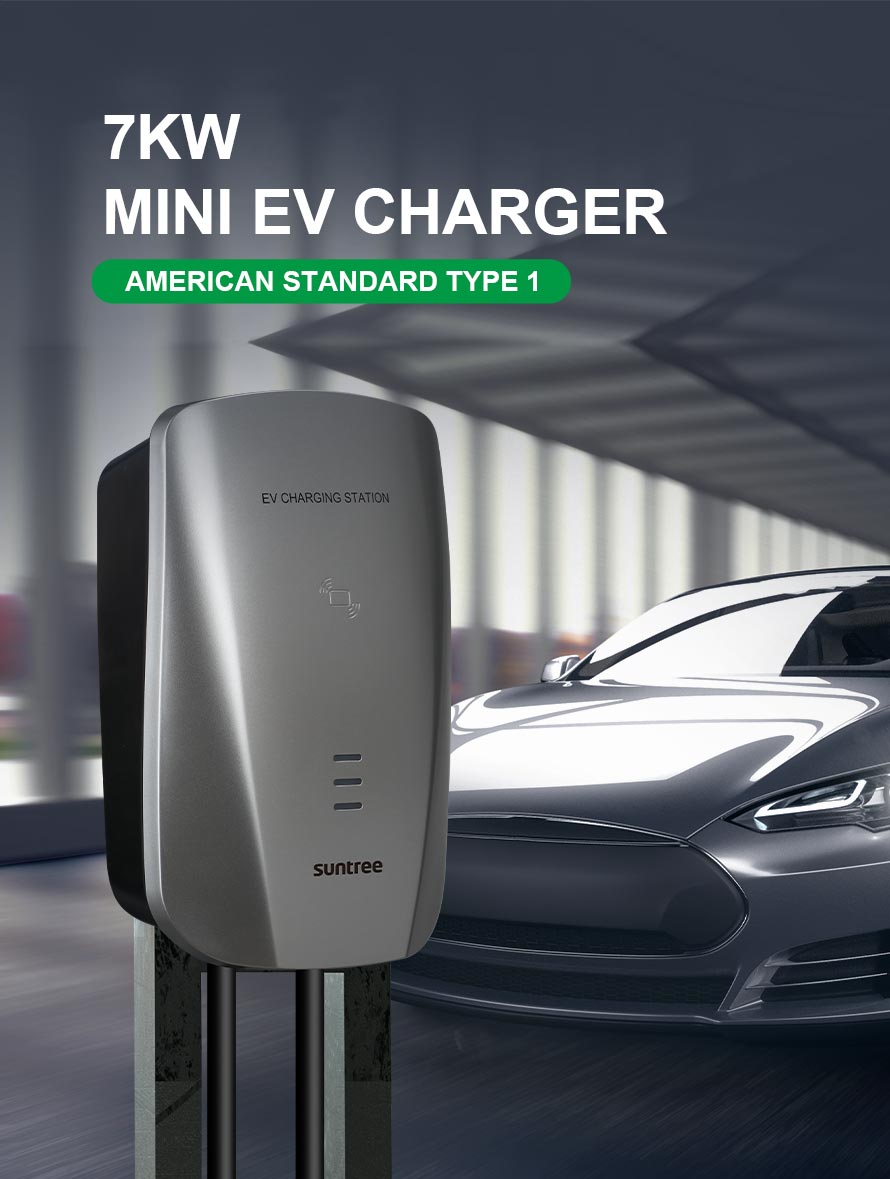

Mini EV Charger 32A/7KW Indicator American Standard Type 1 CE Certificate

Mini EV Charger 32A/7KW Indicator American Standard Type 1 CE Certificate

• With swipe card start and remote stop start, with rechargeable IC card.

• Appointment charging function, can be charged according to the user's demand, full automatic end.

• History record function can query historical charging records and expense records

• Equipped with display screen to display SOC information in real time and estimate full time.

• With overload protection, over voltage protection, under voltage protection, short.
  circuit protection, over temperature protection, emergency stop and other functions.

• Convenient charging, plug and play.




ELECTRICAL TECHNICAL REFERENCE
DETAILED SPECIFICATIONS
Product model Single phase electric AC charging pile (US VERSION)
STRUCTURE APPEARANCE

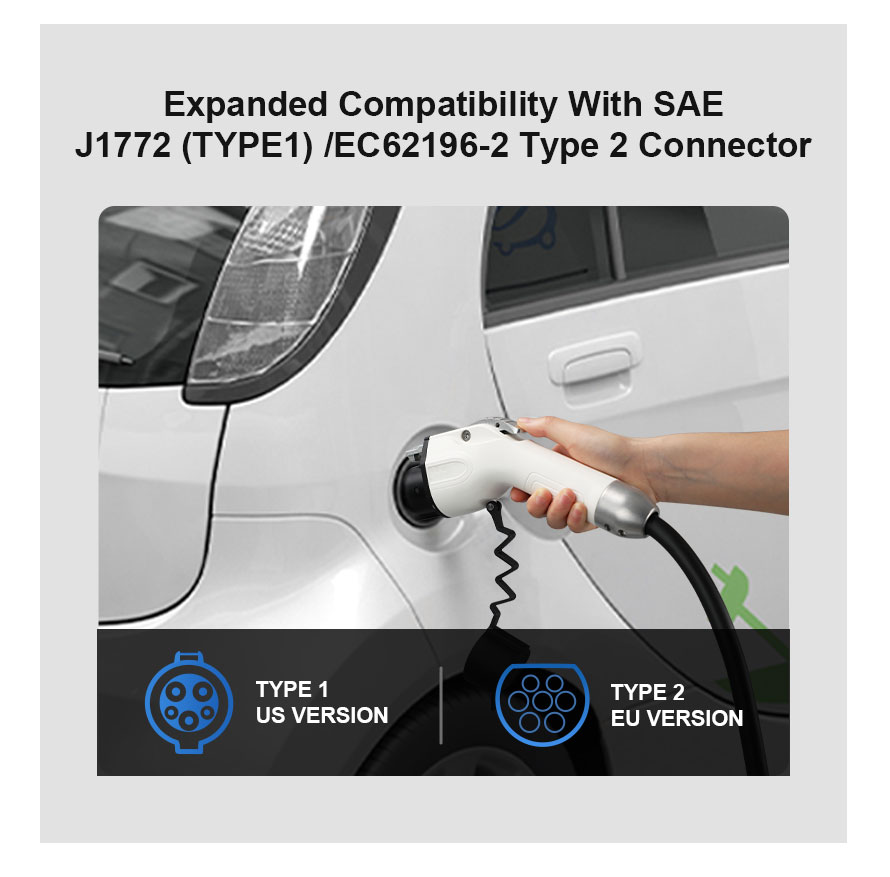

Gun head American standard TYPE 1
Equipment size 240mm *145mm *80mm (L *W*T)
Installation method Column mounted (floor mounted) or wall mounted Install optional
ELECTRICAL INDICATORS
Working volatage AC 240 V( L1+N+PE )
Frequency 50/60Hz
Rated power 7KW
Output current 0-32A
FEATURE DESIGN
Start mode Plug & play
Display information 2.8 in LCD large screen, real-time dynamic display, exquisite high-end
SAFETY DESIGN
Executive standard SAE J1772 (Type 1)
Display function Display parameters Charge voltage, charge current, charge quantity, SOC, fault code
USE ENVIRONMENT
Working temperature 5-95% RH
Working humidity -30℃~50℃
The cooling way Natural air cooling

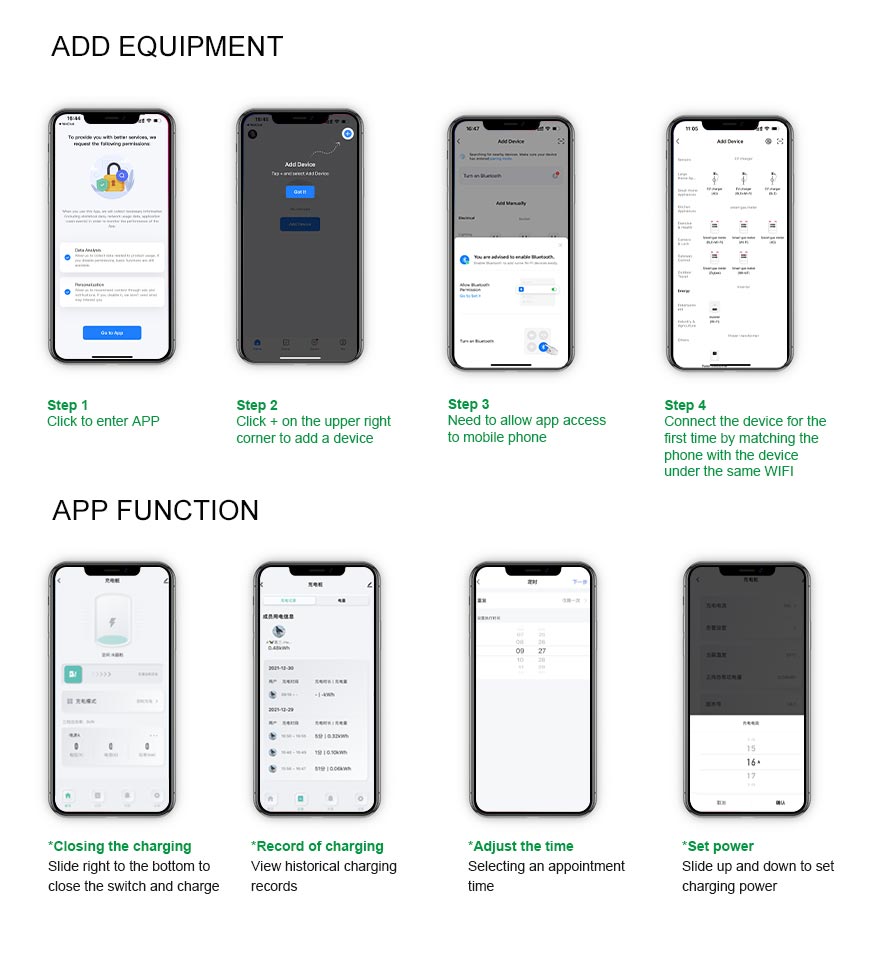

MOBILE APPLICATION



MOBILE APPLICATION

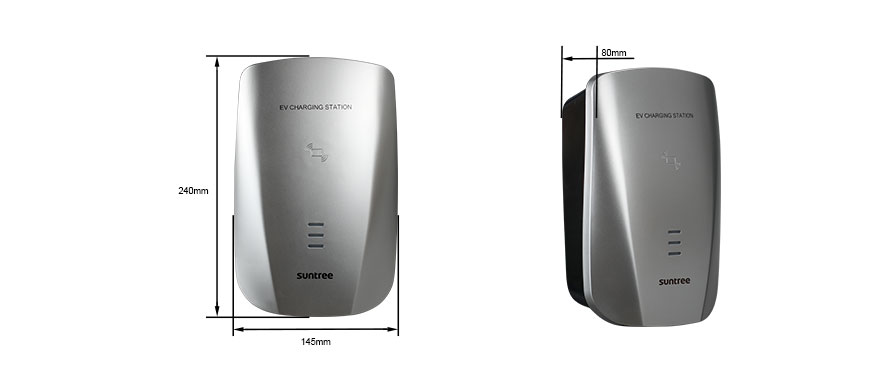

DIMENSIONS

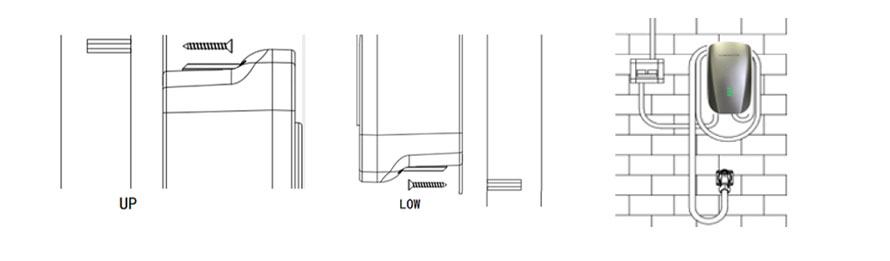

INSTALL
